MRT 4 Woodpower - Glassløfter

The MRT4, with dual circuit vacuum system technology, is built for versatility. Glassløfter

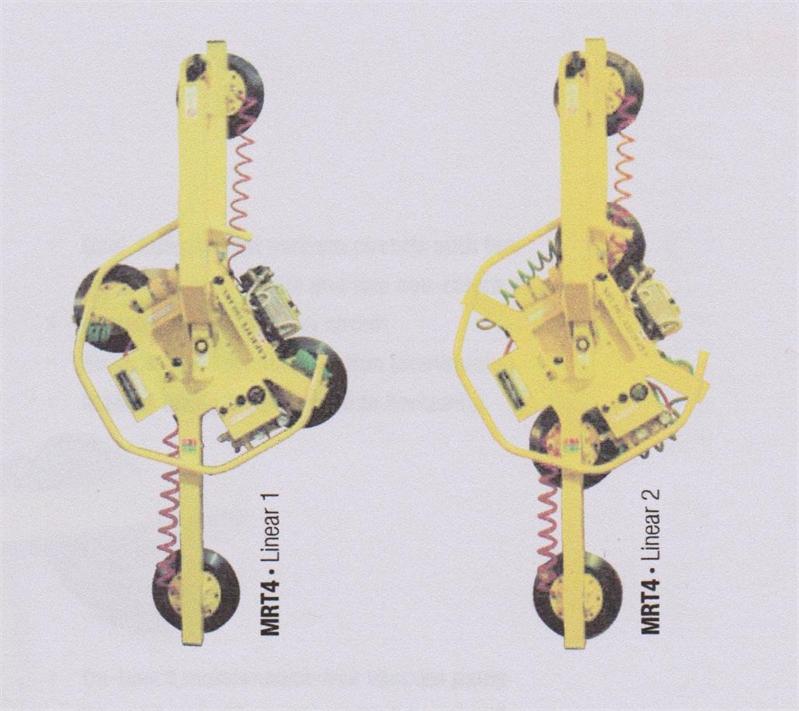

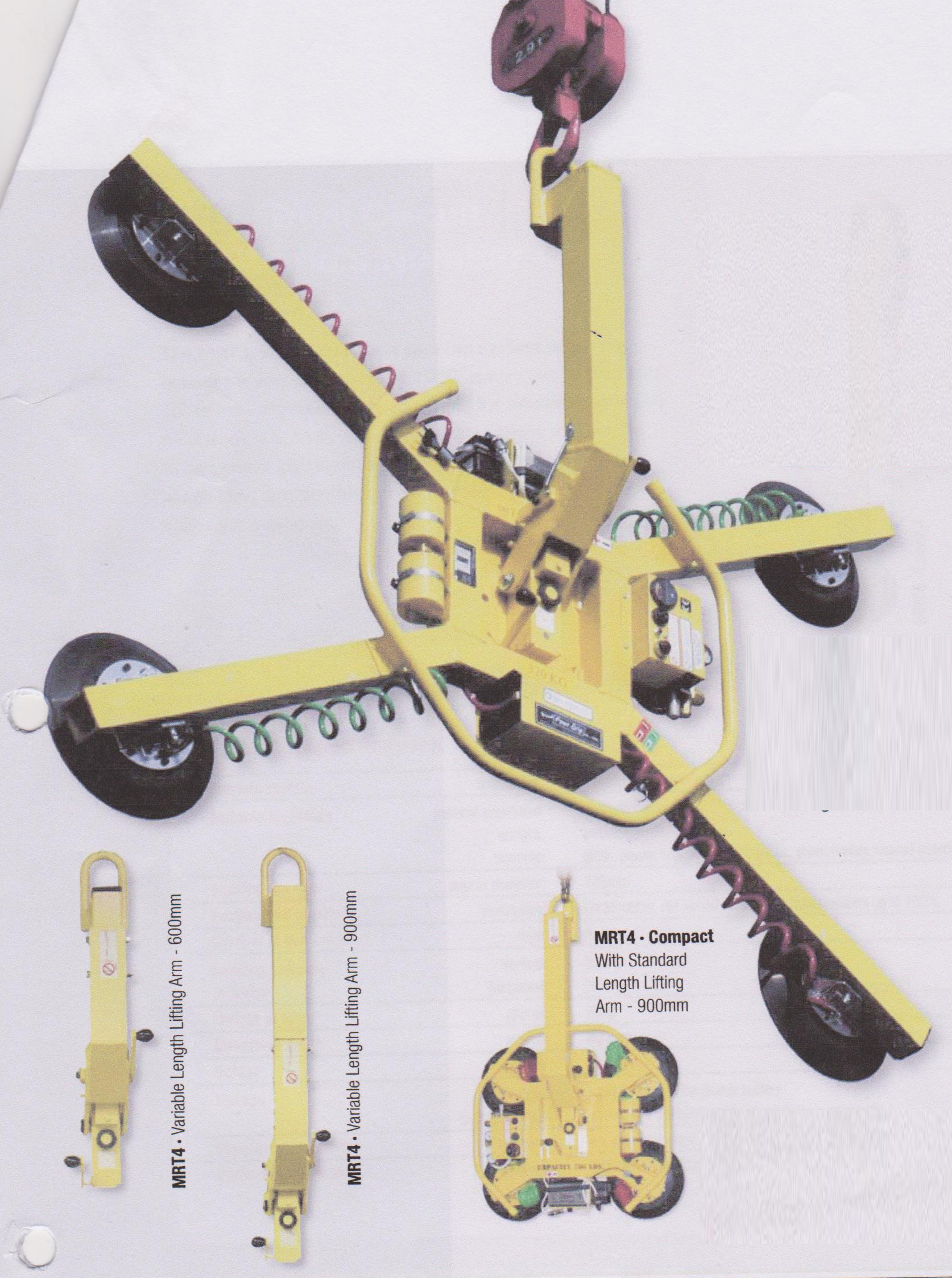

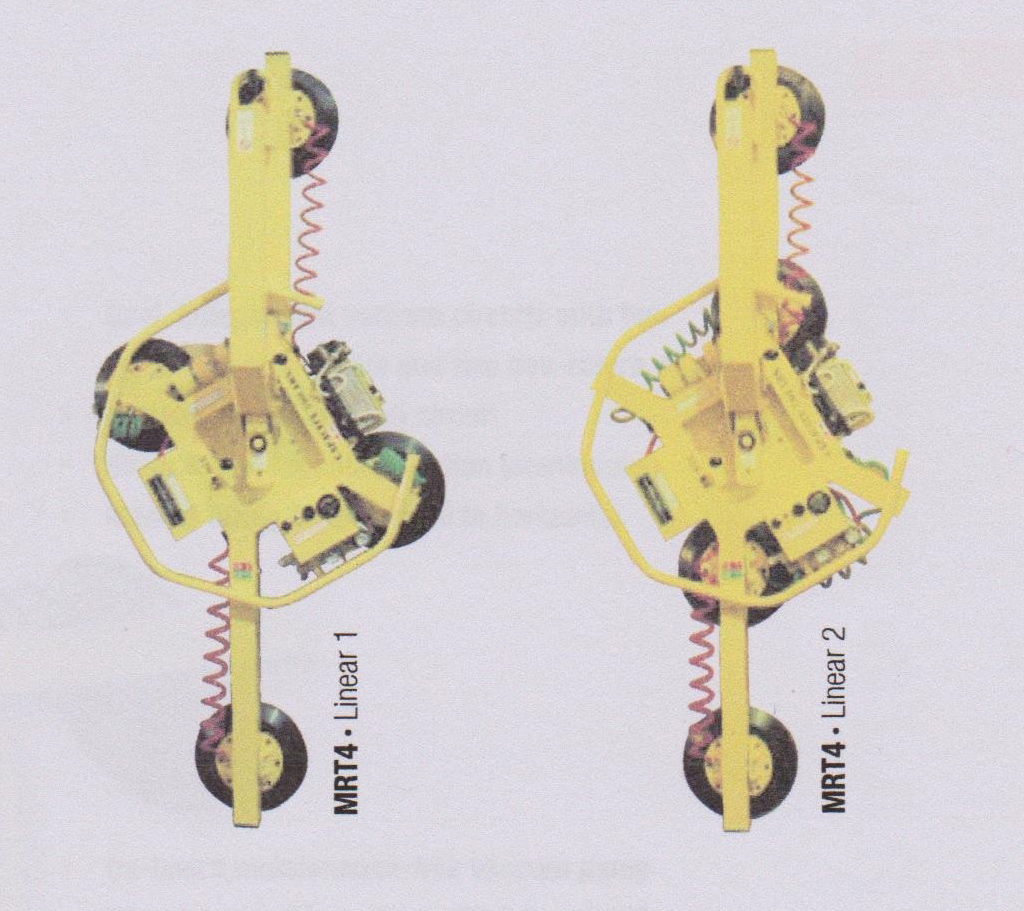

It delivers 360 continous rotation with 90 tilt from any rotation position. Using the extension arms and moveable pads, three extra frame configurations are possible to cover most load sizes on site or in the workshop. A variable length lifting arm may be specified, allowing easier fitting under soffits and overhangs.
Glassløfter

Loadingcapacity:

Vertical 320 kg, horizontal 320 kg


Vacuum system Glassløfter:
Dual Circuit 1 pump, 2 vacuum tanks
Suitable for lifting Glassløfter:
Material properties: gastight
Surface:smooth
example: glass, plastic boards, ceramic plates etc
Suction cup type:
Approx diam. 305 mm
Suction cup quality:Black rubber, not abrasion resistant, heat resistant up to 100C
Number of suction cups:
4
Loading capacity frame:
320 kg
Weight of lifter:58 kg

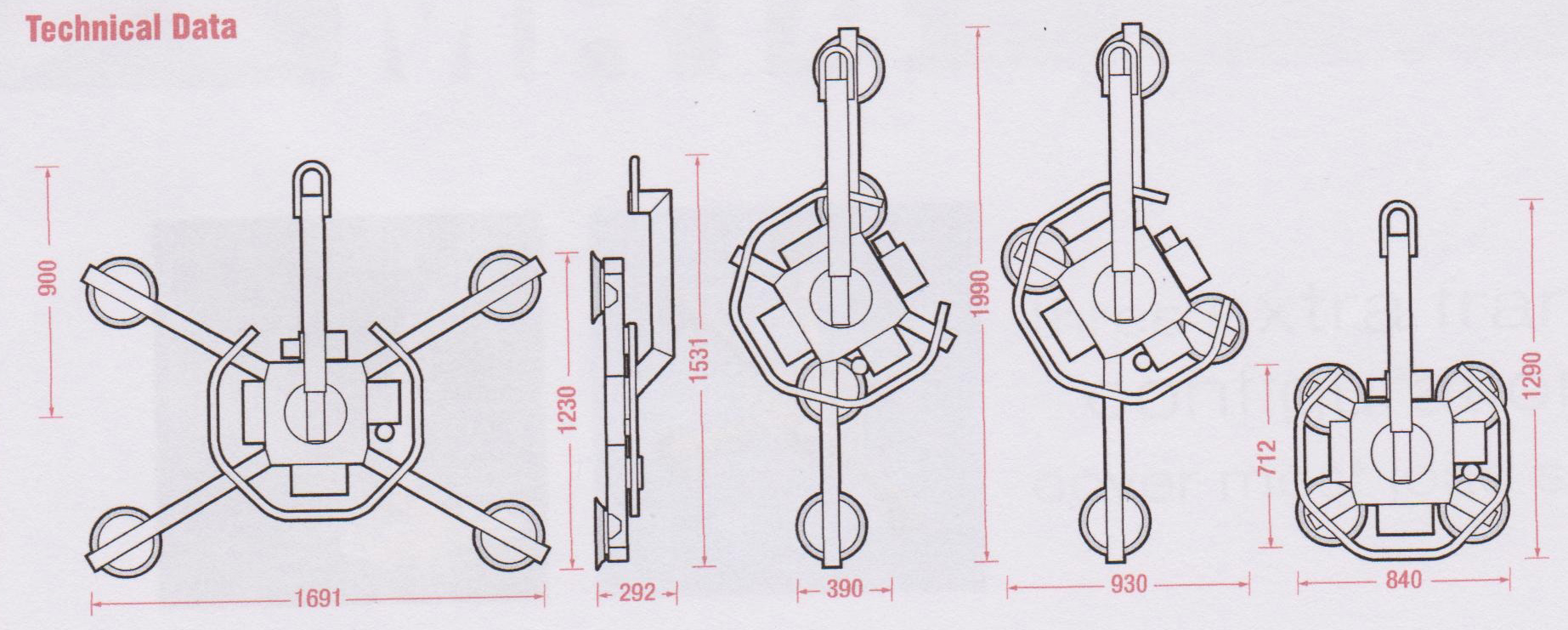

Structural depth:
292 mm
Output:
1.5 m3/h
Voltage
pump: 12v
battery charger: 110v/240v
Standard accessories:
4 x extension arms
Optinoal  accessories:
Variable length lifting arm, extra lengt extension arms
MRT4 Dual Circuit
Glassløfter
